Automated Driving Business

We connect everything! A safe world where connections are harmonized,
Chemtronics paves the way for the era of Automated driving.

V2X Technology

  • Module | DSRC Gen1

    Frequency Bands : 5850 - 5925 MHz

    Transmit Power : +23dBm (max)

    Receiver Sens. : -97dBm (typ)

    Antenna Diversity : 2Tx 2Rx support

    Temperature Range : -40˚C ~ +85˚C

    Dimensions : 40 x 30 x 4 mm

    Standards Conformance :
    IEEE 802.11p - 2010
    IEEE 1609.2/3/4 - 2016

  • OBU | DSRC + LTE Hybrid

    Frequency Bands : 5850-5925 MHz

    Transmit Power : +23dBm (max)

    Receiver Sens. : -97dBm (typ)

    Antenna Diversity : 2Tx 2Rx support

    Temperature Range : -40˚C ~ +85˚C

    Dimensions : 149.5 x 133 x 27.5mm

    Standards Conformance :
    IEEE 802.11p - 2010
    IEEE 1609.2/3/4 - 2016

  • Smart Antenna

    Frequency Bands : 5850 - 5925 MHz

    Transmit Power : +23dBm (max)

    Receiver Sens. : -97dBm (typ)

    Antenna Diversity : 2Tx 2Rx support

    Temperature Range : -40˚C ~ +85˚C

    Dimensions : 170 x 90 x 90 mm

  • Module | DSRC Gen2

    Frequency Bands : 5850 - 5925 MHz

    Transmit Power : +23dBm (max)

    Receiver Sens. : -97dBm (typ)

    Antenna : 1Tx 1Rx support

    Temperature Range :
    -40˚C ~ +105˚C

    Dimensions : 24 x 23 x 3mm

    Standards Conformance :
    IEEE 802.11p - 2010
    IEEE 1609.2/3/4 - 2016

  • OBU | DSRC + C-V2X Hybrid

    Frequency Bands : 5850-5925MHz (Band 47)

    Transmit Power : +23dBm (max)

    Receiver Sens. :
    90.4dBm @QPSK(10MHz) (min)
    87.5dBm @QPSK(20MHz) (min)

    Antenna : 1Tx 1Rx /1Tx 2Rx support

    Temperature Range : -40˚C ~ +85˚C

    Standards Conformance :
    (C-V2X) 3GPP Rel.14
    (DSRC) IEEE 802.11p – 2010
    IEEE 1609.2/3/4-2016

  • RSU

    Frequency Bands : 5850 - 5925 MHz

    Transmit Power : +23dBm (max)

    Receiver Sens. : -97dBm (typ)

    Antenna Diversity : 2Tx 2Rx support

    Temperature Range : -34˚C ~ +74˚C

    Dimensions : 255 x 185 x 100 mm

    Standards Conformance :
    IEEE 802.11p - 2010
    IEEE 1609.2/3/4-2016

ADAS Technology

3D HD SVM

SVM Composition

Camera

HD LVDS 4ch,
190˚(H)

ECU

AEC-Q100
SoC, CAN

SVM Function

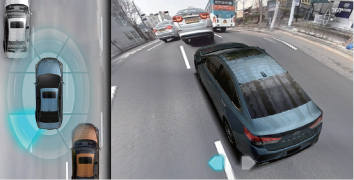

  • 3D SVM

    Top View

    Front Rear Side View

    Parking Guidelines

  • Calibration

    In-Line Calibration

    Auto Calibration

  • ADAS

    LDWS

    DVR(EDR)

    MOD

    BSD

MAIN Function

  • Camera based ADAS Solution

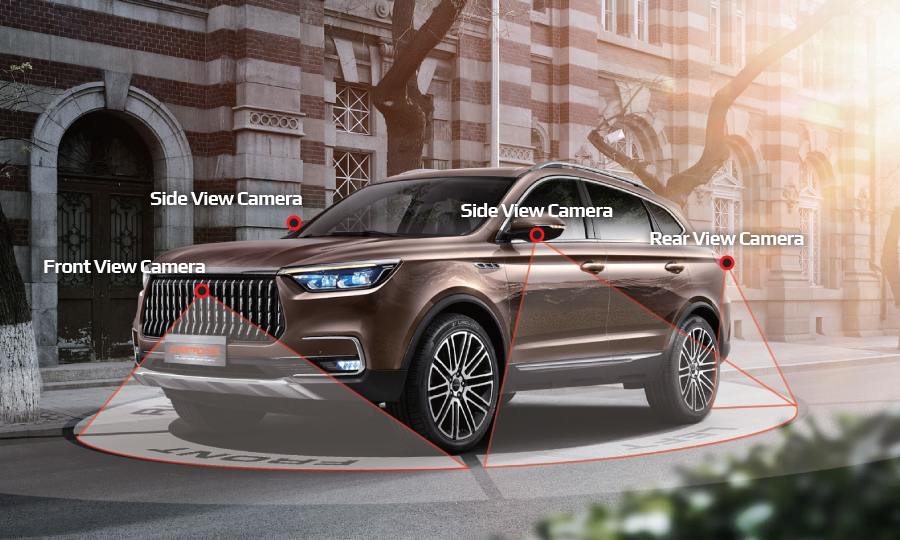

    The four super wide-angle cameras show the vehicle’s 360 -degree surroundings simultaneously without blind spot, and images can intelligently switch to front/rear/right/left view.

  • Easy parking and passing the narrow road

    This system helps drivers to park and drive through in a confined space more easily by better understanding the vehicle’s surroundings.

  • Record video feed from each of the four cameras

    This system can be used as a car DVR by recording videos from 4 channel HD cameras and record separately when the G-sensor is triggered.

  • Drive more safely with ADAS functions

    This is all-in-one device converging ADAS functions to enhance safety and convenience without adding other devices.

FMS Technology

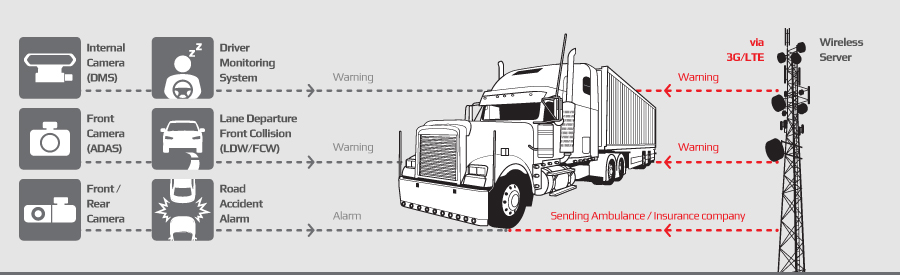

Smart Fleet Management System

MAIN Function

  • Driver Monitoring System

    It is tracking driver's eyes and actions while driving such as texting, drinking and smoking.

  • Advanced Driver Assistance System

    It is designed to warn the driver when the vehicle begins to move out of its lane without using turn indicator or the collision becomes imminent.

  • Car DVR

    It can provide video evidence in the event of a road accident. When parked, Car DVR can capture video and picture evidence.

  • Real-time Mornitoring via 3G/LTE

    All events can be sent to server or center in real time, and FMS companies can give their driver warnings.
